Forged
Fittings
At Metrade, we specialize in supplying forged fittings that deliver exceptional performance in high-pressure and high-temperature applications. Engineered for strength, durability, and leak-free performance, our forged fittings provide the secure, permanent connections that your piping systems demand. With precise manufacturing processes and strict quality control, our forged fittings ensure the integrity and reliability of your flow control systems.
Forged fittings are pipe fittings that are manufactured through the process of forging, where metal is shaped by applying force or pressure to it. This results in fittings that are strong, durable, and resistant to fatigue, making them ideal for high-pressure and high-temperature applications. Forged fittings are typically used in piping systems where strength, reliability, and resistance to impact or wear are essential.

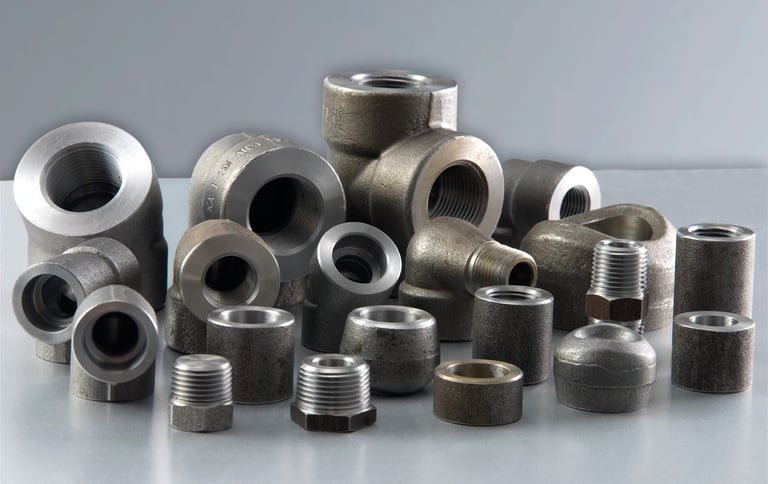

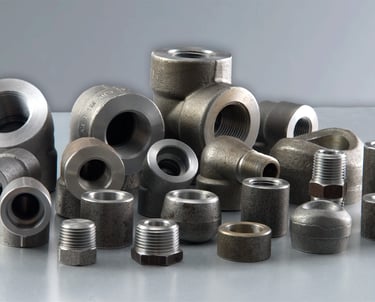

The various types of Forged Fittings supplied are:

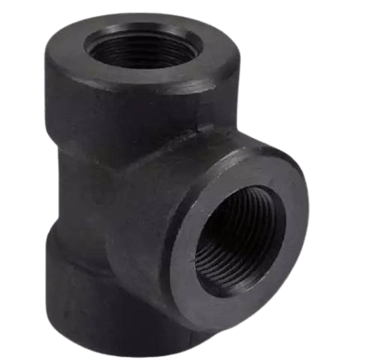

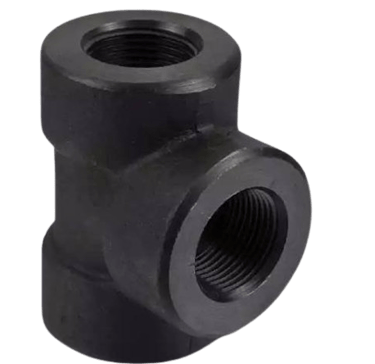

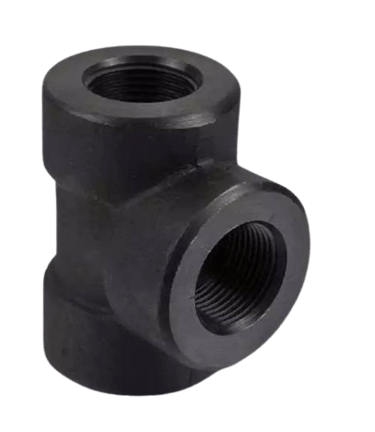

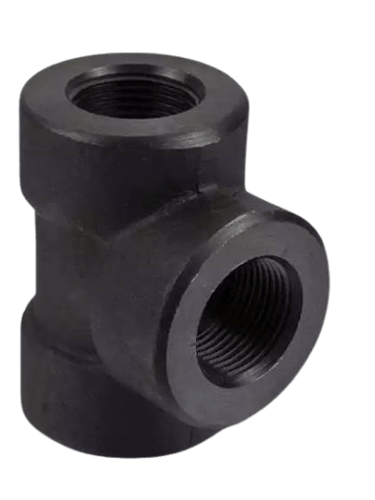

1.Tees

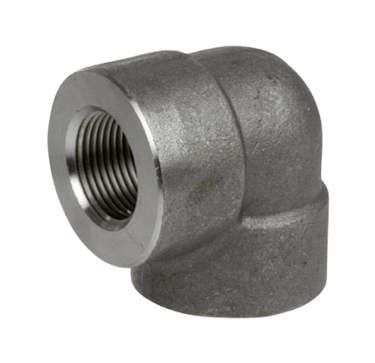

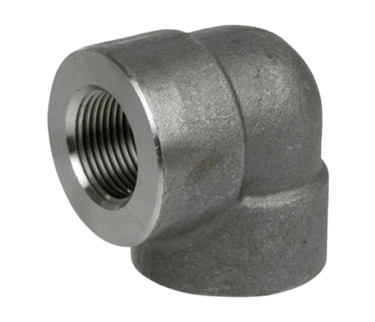

2.Elbows

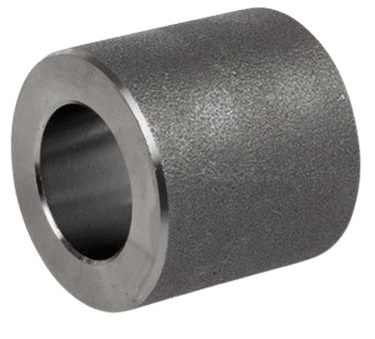

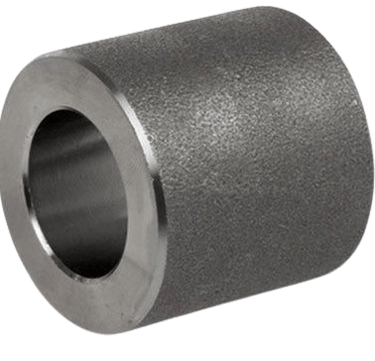

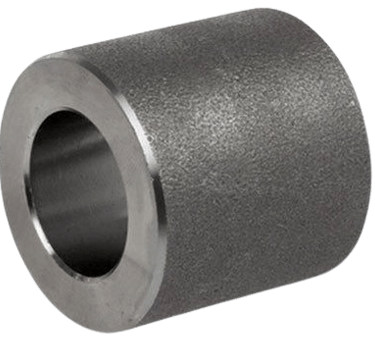

3.Coupling

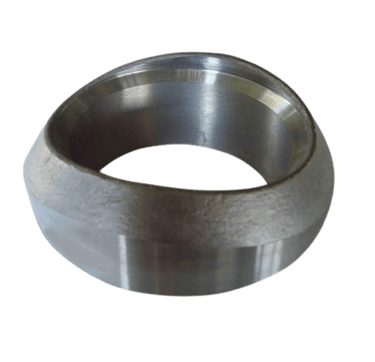

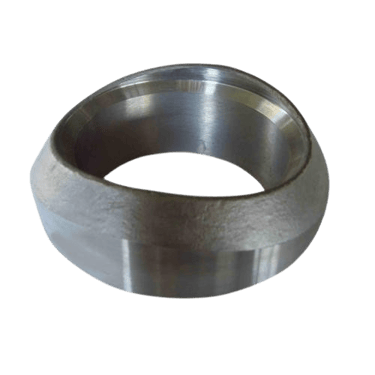

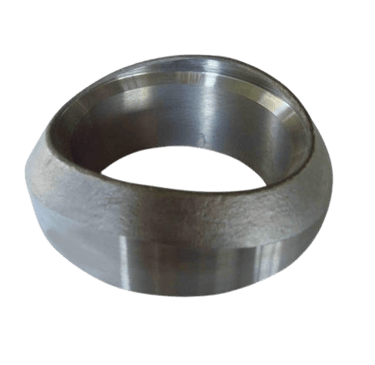

4.Olets
6.Caps

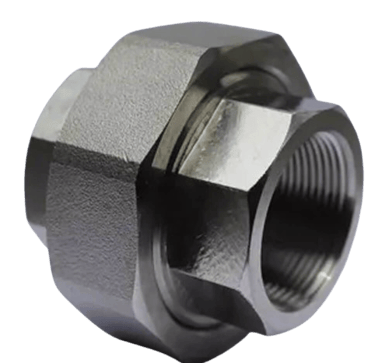

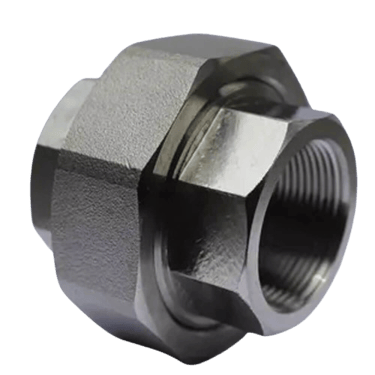

7.Union

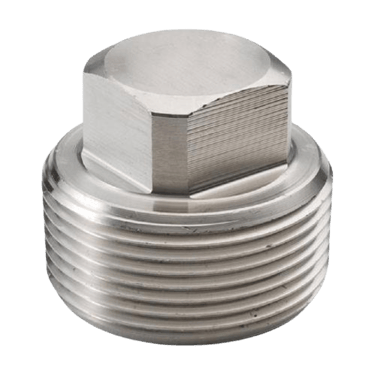

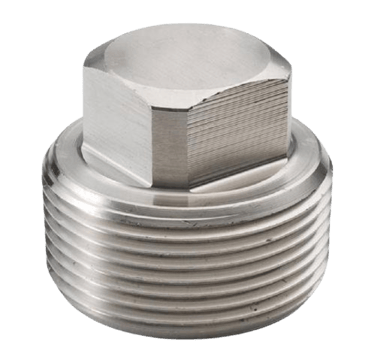

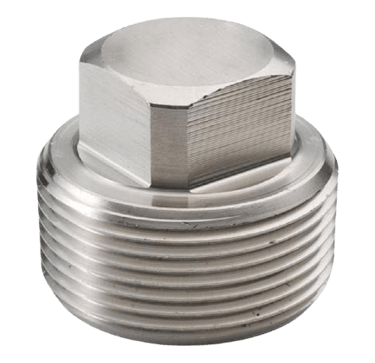

8.Plug
9.Nipples

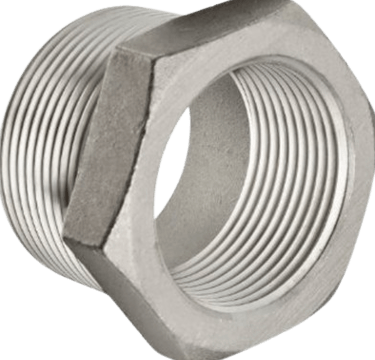

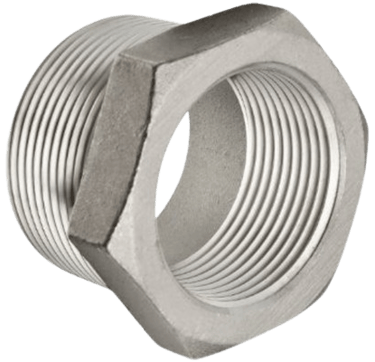

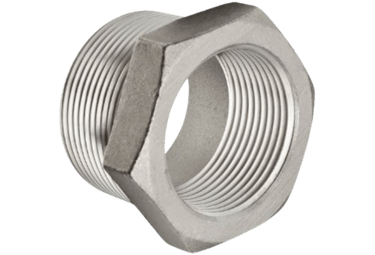

10.Bush
Material | Specification | Grades |
---|---|---|
Carbon Steel | ASTM A105 | A105 |
Low Temperature Carbon Steel | ASTM A350 A694 | LF2 and LF3 F52 |
Stainless Steel and Special Stainless Steel | ASTM A182 | F51, F60, F53, F55, F61, F44, UNS N08367, UNS N08926 |
Alloy Steel | ASTM A182 ASTM A788 | F5 / 9 / 11 / 22 / 91 AISI 4140 |
Nickel Alloy 200/201 | B564 | UNS N02200/N02201 |
Nickel Alloy 276 | B564 | UNS N10276 – Hastelloy C-276 |
Nickel Alloy 400 | B564 | UNS N04400 – Monel 400 |
Nickel Alloy 600 | B564 | UNS N06600 – Inconel 600 |
Nickel Alloy 625 | B564 | UNS N06625 – Inconel 625 |
Nickel Alloy 800H/800HT | B564 | UNS N08810/N08811 – Incoloy 800H/HT |
Nickel Alloy 825 | B564 | UNS N08825 – Incoloy 825 |
Titanium Alloy | B381 | Gr 1 / 2 / 5 / 7 |
