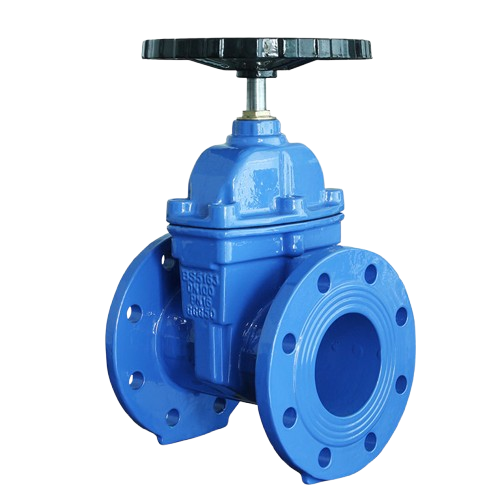

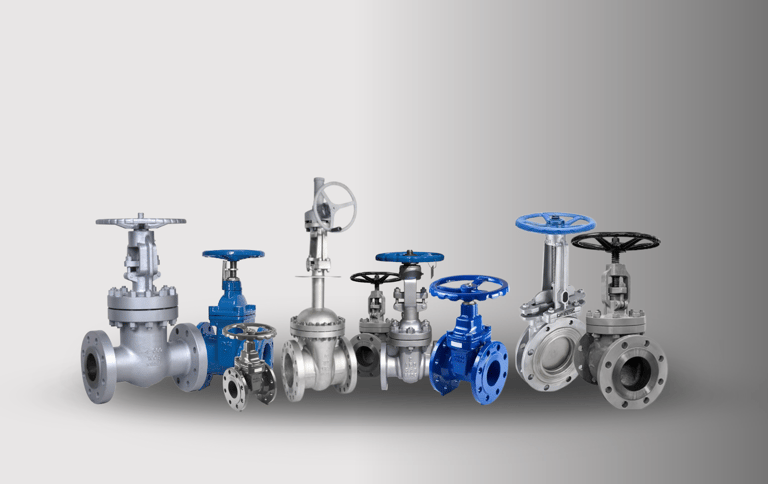

Gate Valves
At Metrade, our Gate Valves provide full flow with minimal pressure drop, making them ideal for applications that require straight-line flow and tight shut-off. They deliver durability and high performance, handling demanding industrial conditions while ensuring reliable operation.
Industries worldwide use our gate valve for on/off services, especially in systems where infrequent operation occurs, providing both safety and efficiency. Our team supplies standard isolation solutions as well as custom-designed valves to meet specific system needs. With precision engineering, robust construction, and responsive technical support, these valves optimize flow control, enhance operational efficiency, and maintain dependable performance across a wide range of industrial applications.
Dimensions - 1" – 36"
Materials - Carbon Steel
- Low Temperature CS
- Stainless Steel
- Special Stainless Steel
- Alloy Steel
- Nickel Alloy
- Titanium Alloy
Ball Valve
Butterfly Valve
Check Valve

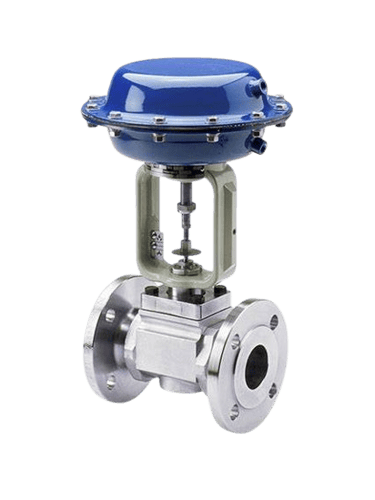

Control Valve
Gate Valve
Globe Valve
Needle Valve
Plug Valve
ESDVMaterial | Specification | Grades |
|---|---|---|
| Carbon Steel | ASTM A105 ASTM A216 ASTM A217 | A105 WCB WC6, WC9, C5, C12, C12A |
| Low Temperature Carbon Steel | ASTM A350 ASTM A352 | LF2 LCB/LCC |
| Stainless Steel | ASTM A351 | CF8, CF8M, CF3, CF3M |
| Alloy Steel | ASTM A182 | F5, F11, F22 |
| Nickel Alloy 400 | ASTM B164 | Monel 400 |
| Nickel Alloy 600 | ASTM B166 | Inconel 600 |
| Nickel Alloy 625 | ASTM B446 | Inconel 625 |
| Nickel Alloys (Monel & Inconel) | ASTM B637 | Inconel 718 |
| Titanium Alloy | ASTM B265 (CP Titanium) ASTM B265 (Ti-6Al-4V) | Gr 2 Gr 5 (Ti-6Al-4V) |
A gate valve is a linear motion valve primarily used to start or stop the flow of liquids in a pipeline. It operates by raising or lowering a solid gate (or wedge) inside the valve body, which either permits full flow or completely shuts off the passage. Known for their minimal pressure drop and full bore design, gate valves are ideal for applications that require unobstructed flow and are not typically used for throttling. They are widely used in water supply systems, oil and gas pipelines, power plants, and industrial process systems. Their simple construction, bidirectional sealing, and suitability for both above-ground and underground installations make them a reliable choice for long-term flow control applications.
